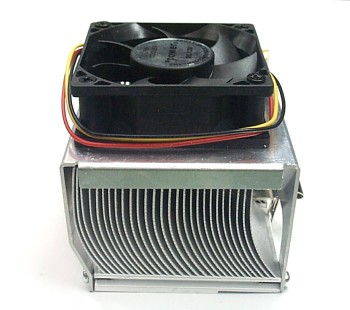

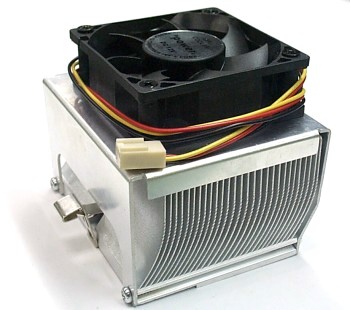

**ⁿPOWER NP81D CPU Cooler**

Higher than 1.7GHz frequency CPU Weight: 280g Heat Sink Fin: 27 ᠱ Pin *Dimensions: L60 W80 H72 (mm)* Heat Sink Size: *L60 W80 H47 (mm)* Fan RPM: 5500 ᱰ % RPM Air Flow: 28.95 ᵠ% CFM

**ⁿPOWER NP81D SPECIFICATION**
	Gross Weight	280 g
	Dimensions	L60 W80 H72 (mm)
	Heat Sink Dimensions	L60 W80 H47 (mm)
	Heat Sink Fin	Fin27᱐in
	Heat Sink Material	Aluminum
	Clip Material	Steel SK7
	Fan Bearing	One Ball One Sleeve Bearing
	Fan Dimensions	L60 W60 H20(mm)
	Fan MTBF	20,000 hr
	Power Connector	Molex 2510 3 Pin
	Output Signal	Yes
	Fan RPM	5500 ᱰ % RPM
	Air Flow	28.95 ᵠ% CFM
	Noise	41.5dB/A
	Fan Safety Standard	UL
	Rated Voltage	DC 12 V
	Rated Current	0.28A
	Operating Range	6.0 ~ 13.8 VDC
	Rated Input	3.36W
