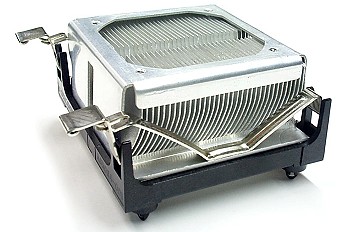

**ⁿPOWER NP478D CPU Cooler**

HEAT SINK: FA478D
Higher than P4 2.0GHz frequency CPU Weight: 235g Heat Sink Fin: 32 ᠱ Pin *Dimensions: L63.5W89H57 (mm)* *Heat Sink Size: L63.5W89H32 (mm)* Fan RPM: 5500 ᱰ % RPM Air Flow: 28.95 ᵠ% CFM

**ⁿPOWER NP478D SPECIFICATION**
	Gross Weight	235 g
	Dimensions	L63.5 W89 H57 (mm)
	Heat Sink Dimensions	L63.5 * W89 * H32 (mm)
	Heat Sink	Fin32᱐in
	Heat Sink Material	Aluminum
	Clip Material	Steel SK7
	Fan Bearing	One Ball One Sleeve Bearing
	Fan Dimensions	L60 * W60 * H20(mm)
	Fan MTBF	20,000Hours
	Power Connector	Molex 2510 3 Pin
	Output Signal	Yes
	Fan RPM	5500 ᱰ % RPM
	Air Flow	28.95 ᵠ% CFM
	Noise	41.5 dB/A
	Fan Safety Standard	UL
	Rated Voltage	DC 12 V
	Rated Current	0.28A
	Operating Range	6.0 ~ 13.8 VDC
	Rated Input	3.36W
