Aluminum Cold Forging Heat Sinks

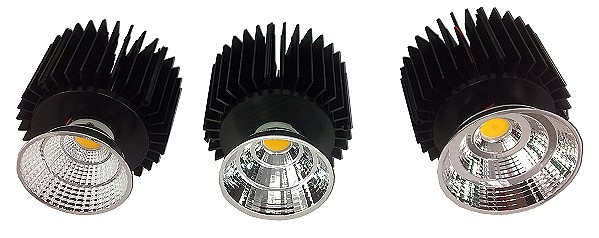

LED LIGHTING HEAT SINK FOR BRIDGELUX , CITIZEN ,
FORTIMO , CREE...
|
|
Model Name
|
Heatsink Spec(mm)
|
Cooling capacity
|
Weight
|
Material
|
|
NPH L-CF-9037
|
D=90, H:37
|
P <
26W
|
0.223 kg
|
Aluminum (AL 1070)
|
|
NPH L-CF-9057
|
D=90, H:57
|
P <30W
|
0.286 kg
|
Aluminum (AL 1070)
|
|
NPH L-CF-9077
|
D=90, H:77
|
P < 35W
|
0.354 kg
|
Aluminum (AL 1070)
|
|
NPH L-CF-90107
|
D=90,
H:107
|
P < 40W
|
0.454 kg
|
Aluminum (AL 1070)
|
|

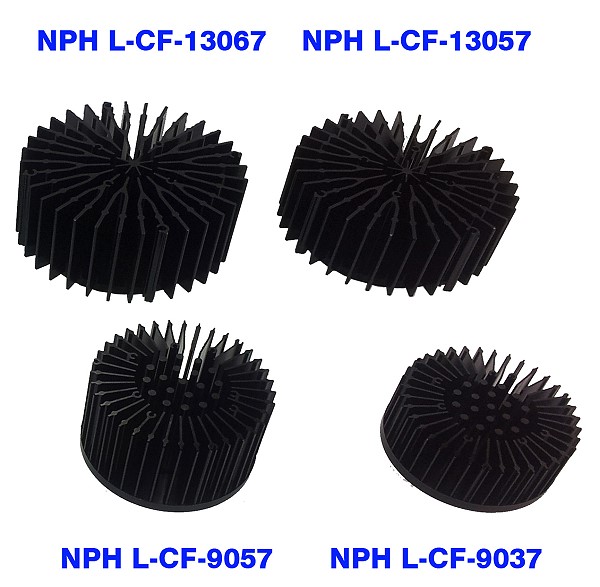

NPH L-CF-13057
|
D=130, H:57
|
P < 50W
|
0.561 kg
|
Aluminum (AL 1070)
|
|
NPH L-CF-13067
|
D=130, H:67
|
P < 55W
|
0.642 kg
|
Aluminum (AL 1070)
|
|

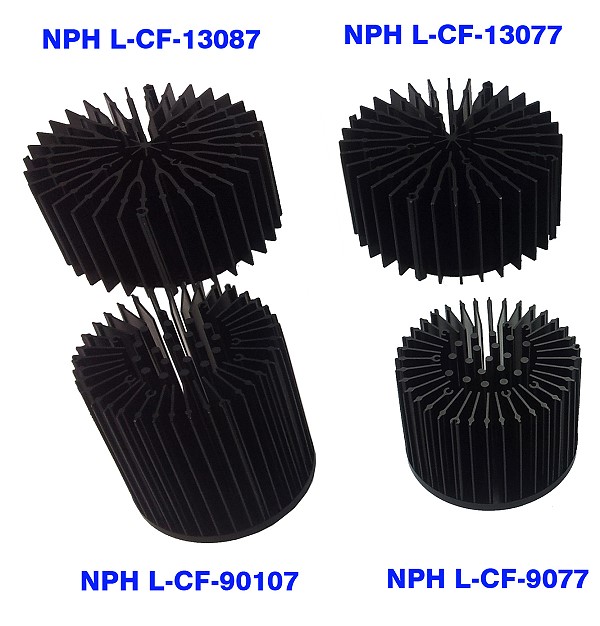

NPH L-CF-13077
|
D=130, H:77
|
P < 60W
|
0.772 kg
|
Aluminum (AL 1070)
|
|
NPH L-CF-13087
|
D=130, H:87
|
P < 65W
|
0.805 kg
|
Aluminum (AL 1070)
|
 |
 |
 |
|
